Highly Efficient Cereal Production Line , Cereal Bar Making Machine

  • Highly Efficient Cereal Production Line , Cereal Bar Making Machine
  • Highly Efficient Cereal Production Line , Cereal Bar Making Machine
  • Highly Efficient Cereal Production Line , Cereal Bar Making Machine
  • Highly Efficient Cereal Production Line , Cereal Bar Making Machine
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification ISO9001
Model Number HTL-T888B
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details suitable packing way
Delivery Time 90 day(s) after payment received
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 8000-10000 kg/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Tunnel Length 3000 Mm Moulds Quantity 68pieces
Production Capacity 8000-10000kg/24h Power 17 KW
Cooling Water Flow Rate 10m³/hour Water Temperature ≤30℃
Temperature ≤25℃ Relative Humidity ≤55%
Highlight

cereal bar production line

,

cereal processing equipment
Leave a Message
Product Description

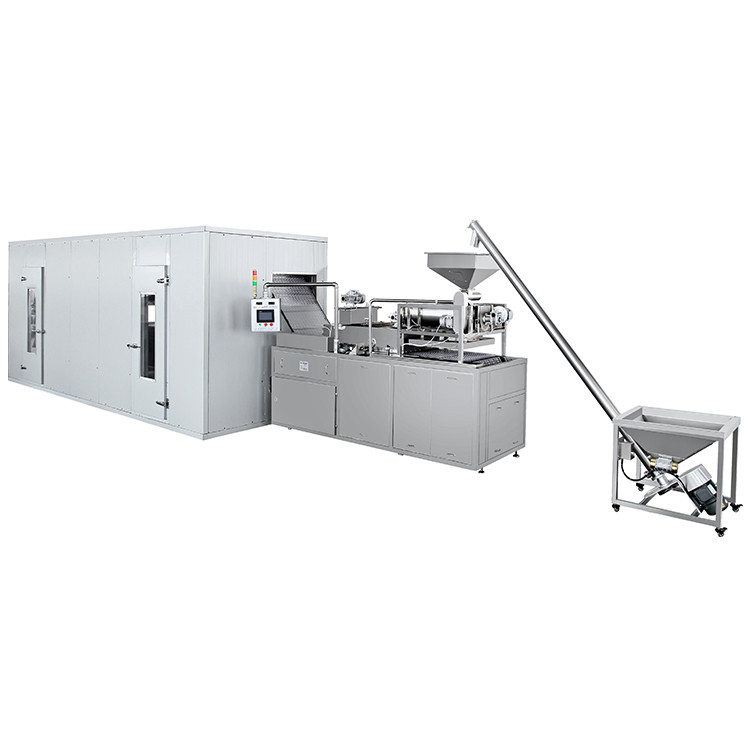

Automatic  Cereal Chocolate Bars Forming Machine

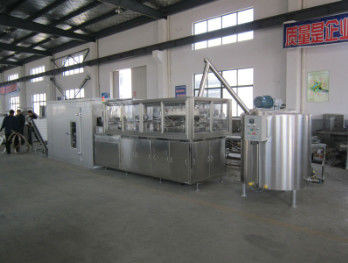

The whole production line introduction:


1).   This production line has 12 national patents; it has the capacity (10 tons/24hours) in China. And it needs the smallest place (Length 28.5m * Width 8m = 228 m²). The whole production line only needs 1-2 people. Electric supply: 3 phases, 380V.Total power: 150 KW.


2).   This machine suits chocolate, oatmeal, millet, peanut, nut, and any other granule particle mixed for the forming production of the coarse grains of sugar. It has the best sales volume at home and abroad, it is one kind of the most popular snacks in the world.


3).   The equipments of the whole production line are including:
Sugar grinding machine, Oil melting pan, Chocolate conche, Holding tank, Oats transport machine, Oats chocolate forming machine unit, Finished products elevator, Transportation and allocation machine, Full automatic packing machine, Conveyor, Elevator and Automatic weighting packing machine.

Main ingredients:

Corn starch, White granulated sugar, Oats, Cocoa butter replacer, Milk powder, Lactose, Vegetable oil, Food additives, Food flavors, Lecithin, Food coloring, etc.

Main technical


Moulds size 800*300*30mm
Moulds quantity 68 pieces
Production capacity 500kg/h
power 17 KW

Dimension (L*W*H)
Cooling tunnel length

7200*23500*1950 mm;
3000 mm

Inside the cooling tunnel
Temperature control range
Relative humidity


4-14℃
≤50%
Installed capacity 50 KVA
Refrigeration system power 15 P
Cooling water inflow pressure ≥0.15MPa
Cooling water flow rate 10m³/hour
Water temperature ≤30℃

Temperature
Relative humidity

≤25℃
≤55%




Quick Details


Voltage 220V/380V/
Power(W) 30 kw
Dimension(L*W*H) 7200*2350*1950 mm
Weight 3000 kg
Capacity 8000-10000 kg/day
quantity of mould 68 pcs
size of mould 800*300 mm
Main motor power 5.5 kw
Cooling capacity 17 kw




Packaging & Delivery


Single package size:
720X235X195 cm

Single gross weight:
3000.0 kg

Package Type:
suitable packing way
Lead Time :

Quantity(Set) 1 - 1 >1
Est. Time(days) 90 To be negotiated





Our Services


Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.







Product Description

Highly Efficient Cereal Production Line , Cereal Bar Making Machine 0Highly Efficient Cereal Production Line , Cereal Bar Making Machine 1
