PLC Computer Control Small Jelly Candy Making Machine High Efficiency
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-T150/300/450/600 |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | Wooden case packing according to your demand |
| Delivery Time | Shipped in 45 work days after payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Voltage | 380V | Power | 25-45KW |
|---|---|---|---|
| Weight | 8000kg | Dimension(L*W*H) | Model |
| Warranty | 12 Months | Application | Candy |
| High Light | candy manufacturing machine,hard candy making equipment |
||
Product Description
High efficiency small jelly candy making machine for hot sale
Product Description

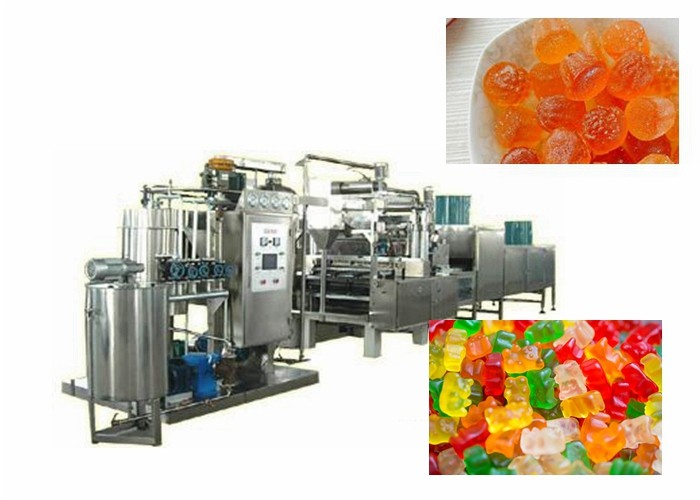

HTL-150/300/450/600jellycandy depositing line is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer to pass the GMP,HACCP,QS authentication easily.This line mainly consists of auto weighing and mixing system, dissolving tank, micro-film cooker, depositor and cooling machine and adopt the advanced servo system to control.
Mode | HTL150 | HTL300 | HTL450 | HTL600 |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Max candy weight | As per the candy size | |||
Depositing speed | 55-70n/min | 55-70n/min | 55-70n/min | 55-70n/min |
Steam requirement | 250kg/h 0.5-0.8MPa | 300kg/h 0.5-0.8MPa | 450kg/h 0.5-0.8MPa | 600kg/h 0.5-0.8MPa |
Compressed air requirement | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa |
Working condition | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% |
Total power | 18KW/380V | 27KW/380V | 34KW/380V | 38KW/380V |
Total length | 15m | 15m | 17m | 17m |
Gross weight | 3500kg | 4000kg | 4500kg | 5000kg |
The advantage of the line is as following:
· PLC/computer process control available;
· An LED touch screen for easy operating;
· The main part is made of stainless steel;
· Molds can be made according to the candy samples provided by customer;
· Exported to more than 20 countries(Vietnam and India etc)
· 24 hours before and after sales
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Here is the molds:
